​Modular Plant Design

​​One of the modular plant design projects which our consulting engineers delivered for a Perth-based client involved designing a modular unit which consisted of basic process control systems (BPCS), safety instrumented systems (SIS), stainless steel tank, skid structure and ladder. This modular design also consists of pumps, instrumentation and process control, pipe and fittings. The project started off by developing the design basis and then completing the process engineering design and mechanical engineering design components.


Modular Plant Design: Process

- Process equipment and pipe sizing
- Calculating pressure drop by simulation
- Multiphase process calculations
- Selecting and sizing valves
- Selecting and sizing instrumentation

- PFDs and piping & instrumentation diagrams (P&IDs)
- Developing the functional specification for process control
- Computational fluid dynamics (CFD) multiphase simulations


Modular Plant Design: Mechanical

- Mechanical design of tank, skid structure and ladder

- Mechanical stress calculations
- Specifying nozzles and appropriate flanges
- Pipe material and schedule selection
- Pipe fittings selection and sizing
- Pipe routing
- Developing the plant layout
- Finite element analysis (FEA) structural simulations


​​Applicable Australian Standards:


Modular Plant Design: Pumps Specification

- Electrical performance according to EN60034-1
- Hydraulic performance according to ISO9906
- Mechanical seal according to 12756 & ISO 3069
- International protection marking, IP Code IEC standard 60529


Modular Plant Design: Skid & Ladder Design

- AS 4100:1998 Steel structures
- AS 1657:2018 Fixed platforms, walkways, stairways and ladders


Modular Plant Design: Fabrication

- AS 1170:2007 Structural design actions
- AS 1554:2004 Structural steel welding


Modular Plant Design: Tank Design

- AS 1692:2006 Steel tanks for flammable & combustible liquids


Modular Plant Design: Piping Design

- AS 2129:2000 Flanges for pipes, valves and fittings
- AS 4130:2009 Polyethylene (PE) pipes for pressure application
- AS NZS 2033:2008 Installation of polyethylene pipe systems
- AS 4041:2006 Pressure piping
- AS 1345:1995 Identification of the contents of pipes conduits and ducts


Modular Plant Design: IP Rating

- AS 1939:1990 Degrees of protection provided by enclosures (IP Code)


Modular Plant Design: Safety Study

- AS IEC 61882:2003 Hazard and operability studies (HAZOP studies)


Modular Plant Design: Drafting

- AS 1100.101:1992 Technical drawing - General principles
- AS 1100.201:1992 Technical drawing part 201 Mechanical engineering drawing​













































Plant Engineering Design - Jimmy Lea P/L

MODULAR PLANT DESIGN: Benefits

​​​The key process plant design deliverables for this modular process plant project were: design basis, equipment & instrument specifications, process flow diagram (PFD), piping and instrumentation diagram (P&ID), equipment/valve/instrument list, basic process control systems (BPCS), safety instrumented systems (SIS), functional specification, general arrangement drawings, cost estimate, datasheets, HAZOP study, hazardous area classification and 3D modelling.

In this modular plant, the process equipment, instrumentation, valves, piping components, and electrical wiring were all skid-mounted within a structural steel framework. Heat tracing, thermal insulation, and an integrated control system were all included in this skid-mounted unit. Each skid-mounted unit was designed to be a self-contained process unit and scalable. When a plant needs to ramp up production and increase its production capacity, multiple similar skid-mounted units could be connected together at the process plant site to form a large process system with a higher plant capacity. This modular plant design employed more steel than traditional construction, because each module was designed to stand independently and to withstand the stresses of being transported, lifted, and erected. The skid-mounted units were therefore structurally stronger than conventional units constructed onsite.

The benefits of our process skid-mounted units are they are highly mobile and can be transported from one location to another as and when required. Since they are self-contained, our skid-mounted units have a smaller foot print, thus saving space in the process plant site. Our process plant engineers work closely with fabricators to ensure only quality fit-for-purpose modular units are delivered to the clients. Apart from being highly scalable, each skid-mounted unit can employ different process equipment such that by swapping different skid-mounted units, the modular plant process can be altered to pursue a different process objective. In addition, they are safer to fabricate because they are fabricated offsite. Fabricating modular plants offsite does not interfere with onsite operations and allows onsite process plant upgrade to proceed simultaneously. The ability to complete these steps in parallel can eliminate months off the project schedule, allowing process plants to achieve their goals faster.

We differentiate ourselves from other engineering firms in the sense that all our skid-mounted designs are conducted by our in-house process plant design engineers, supported by our performance-based technology to ensure that all skid-mounted units that our plant engineering designers designed will work effectively prior to fabrication. Our skid-mounted unit can be housed in an open steel frame or housed inside a shipping container. As process plant consultants, we have delivered many skid-mounted units to clients from various industries such as chemical process, mining, pharmaceutical and water industries.
​​

Skid Design - Jimmy Lea P/L
P&IDs - Jimmy Lea P/L
Plant Engineering Design - Jimmy Lea P/L
Plant Engineering Design - Jimmy Lea P/L
Plant Engineering Design - Jimmy Lea P/L
Plant Engineering Design - Jimmy Lea P/L
Plant mechanical design - Jimmy Lea P/L
Semiconductor Cleanroom Design - Jimmy Lea P/L

Cleanroom Facility Design

In a semiconductor cleanroom context, contamination is a process that causes surfaces to be soiled with contaminating substances such as random particles. The two broad categories of surface contaminants are particulates and film type. These contaminants can produce serious defects in a microelectronic wafer manufactured in a semiconductor cleanroom. Film contaminants of only 10 nanometres, for example, can drastically reduce the adhesion of a coating on a wafer or chip. Although particles of 0.5 micron or larger are typically the target, some industries are now targeting even smaller particles. Thus, it is highly important to prevent these contaminants from entering the cleanroom through proper cleanroom design.


Our engineering team designs cleanroom facility using the bay and chase concept to prevent contamination of products. In a unidirectional airflow, air patterns are optimised whilst air turbulence is minimised. Usually, in a vertical laminar flow cleanroom, air is introduced through ceiling HEPA filters and returned at the base of sidewalls or through a raised-access floor. The air enters from the entire ceiling area, so this configuration produces nominally parallel airflow. Whilst in a cleanroom with a low-class number the greater part of the ceiling requires HEPA filters, for an ISO Class 5 or better cleanroom, the entire ceiling may require HEPA filtration to provide good uniform velocity. Ideally, the air return flows through a grated or perforated floor. In a vertical downflow cleanroom, the entire room is bathed in a uniform shower of downward-flowing ultraclean air. With this design, contamination that is generated in the space is swept down and out through the floor and will not move laterally against the downward flow of air or contribute to contamination build up in the room. Through a proper design and a precise installation, a highly controlled cleanroom can be attained.


Finally, our design is verified using CFD analysis by our in-house CFD simulation specialists using the most advanced CFD package.​​


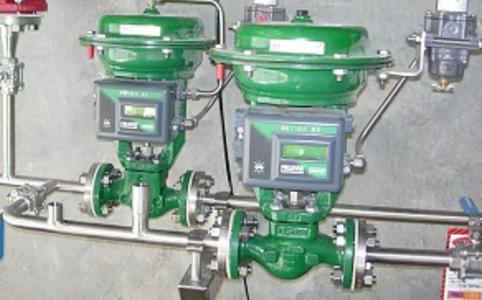

Plant Design: Process Control

This short article provides an example of how our process control and instrumentation design overcame an engineering challenge. A mixer requires a precise temperature control in the accuracy of ± 1 degree Celsius. To achieve this process control, we designed a cascade control system as shown in the piping and instrumentation diagram (P&ID). Cascade control system consists of two or more controllers in series and have only a single, independently adjustable set point, that of the primary (master) controller. The main value of having secondary (slave) controllers is that they act as the first line of defence against process perturbations, preventing these upsets from entering and upsetting the primary process. If there were no slave controllers, an upset due to a change in water temperature would not be detected until it had upset the master measurement. In this configuration, the cascade slave detects the occurrence of such upsets and immediately counteracts them so that the master measurement is not upset and the primary loop is not even aware that an upset occurred in the properties of the utilities.​​

​In this particular project, to achieve a precise mixer temperature, the controlled process variable, mixer temperature, whose response is slow to changes in the heat transfer medium flow, manipulated variable, is allowed to adjust the set point of a secondary loop, whose response to hot water flow changes is rapid. In this scenario, the mixer temperature controller (master) varies the set point of the jacket temperature control loop (slave). The objective of the slave loop in this scenario is to correct for all outside disturbances, without allowing them to affect the mixer temperature. For example, on a basic control system, if the control valve is faulty or if the temperature or pressure of the heat transfer media changes, this would eventually upset mixer temperature. However, with a cascade control system, the slave loop would detect the resulting upset at the jacket outlet earlier and would correct it before it had a chance to upset the master. Since cascade control system will not function properly if the master loop is faster than the slave loop, the process lags were distributed in such a way that the time constant of the slave is one tenth that of the master. In this scenario, the slave controller is used to maintain the jacket outlet (and not inlet) temperature, because in this way the jacket and its dynamic response is included in the slave loop. Another advantage of this configuration is that it removes the principal nonlinearity of the system from the master loop, because mixer temperature is linear with jacket-outlet temperature. The end result is the temperature of the mixer is highly consistent as monitored in the SCADA system.
​​

Plant Engineering Design - Jimmy Lea P/L

PROCESS PLANT CONSULTANTS


As one of the most knowledgeable process plant consultants providing plant engineering design services, we have successfully designed and delivered several notable chemical plants in Australia and Singapore. The success of a chemical plant depends much on the process technology​. Our in-house experienced process engineering consultants ensure that the process technology and process engineering design are viable before proceeding to the next stage of chemical plant design.

Plant Engineering Design - Jimmy Lea P/L
Containerised Plant Design - Jimmy Lea P/L
Skid Design - Jimmy Lea P/L
Piping & Instrumentation Diagram - Jimmy Lea P/L
Plant Engineering Design - Jimmy Lea P/L

AUSTRALIA          SINGAPORE

Engineering & Simulation Consultants

​​​​

​​​​​​​​​​In general, our deliverables for process plant design includes:


​Plant Design: Initiation

- Kick-off meeting with client's team and formulate design execution plan

- Site visit


Plant Design: Process

- Design basis

- Process design criteria

- Mass & energy balance

- Process calculations

- Process flow diagrams (PFDs) and piping & instrumentation diagrams (P&IDs)

- Functional specification

- Process engineering design review with client

- HAZOP with client


Plant Design: Mechanical

- Lists: valves, lines, spares

- Mechanical datasheets

- Mechanical engineering calculations

- Piping and fittings design

- Material-take-off (MTO) lists

- Mechanical engineering design review with client


Plant Design: Structural

- Structural engineering calculations

- Structural lists

- Structural engineering design review with client


​Plant Design: Electrical

- Electrical studies and reports
- Instrument list eg pressure, flowrate, temperature and level
- Electrical datasheets
- Electrical engineering calculations
- Electrical design
- Electrical lists

- Material-take-off (MTO) lists
- Package SOWs
- Electrical engineering design review with client


Plant Design: Drafting

- Process flow diagrams
- Piping & instrumentation diagrams
- 2D and 3D plant layout
- General arrangement (GA), piping, platforms and structures
- Detailed pipe routing and support design
- Mechanical drawings - isometrics
- Detailed plant layout design
- Mechanical drawings
- Electrical drawings
- Pipe, site, equipment and plant labelling
- Structural concrete drawings
- Structural steel drawings
